GPU Passthrough

Overview​

GPU passthrough is a technique that allows a virtual machine (VM) to directly access a physical GPU, enabling better performance for graphics-intensive applications. This guide will walk you through the process of setting up GPU passthrough on Proxmox.

warning

Every set up is a bit different. I am running a Threadripper and NVIDIA A4000 and this worked for me. It may be different depending on your setup.

Enable IOMMU in GRUB​

Edit GRUB

nano /etc/default/grub

Find the line that starts with GRUB_CMDLINE_LINUX_DEFAULT and add intel_iommu=on or amd_iommu=on depending on your CPU. I found that adding iommu=pt is often recommended as well so I usually add it. For example:

GRUB_CMDLINE_LINUX_DEFAULT="quiet intel_iommu=on iommu=pt"

Save and exit the file by pressing CTRL + X, then Y, and then Enter.

Update GRUB

update-grub

Enable VFIO Kernel Modules​

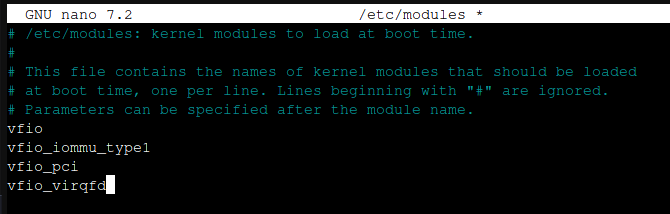

Edit the modules file

nano /etc/modules

Add the following lines to the end of the file:

vfio
vfio_iommu_type1
vfio_pci
vfio_virqfd

vfio

Save and exit the file by pressing CTRL + X, then Y, and then Enter.

Blacklist NVIDIA Drivers on Hostname​

Edit the blacklist file

nano /etc/modprobe.d/blacklist-nvidia.conf

Add the following lines to the end of the file:

blacklist nouveau
blacklist nvidia
blacklist nvidiafb

blacklist

Bind GPU to VFIO​

Find the GPU's device IDs:

lspci -nn | grep -i nvidia

You should see something like this:

41:00.0 VGA compatible controller [0300]: NVIDIA Corporation GA104GL [RTX A4000] [10de:24b0] (rev a1)
41:00.1 Audio device [0403]: NVIDIA Corporation GA104 High Definition Audio Controller [10de:228b] (rev a1)

Create a file

nano /etc/modprobe.d/vfio.conf

Add the following lines to the end of the file, replacing 10de:24b0 and 10de:228b with your GPU's device IDs:

options vfio-pci ids=10de:24b0,10de:228b

Save and exit the file by pressing CTRL + X, then Y, and then Enter.

Update initramfs​

update-initramfs -u -k all

Reboot​

reboot

Verify GPU Passthrough​

After the system reboots, you can verify that the GPU is bound to VFIO by running the following command:

lspci -nnk -d 10de:24b0

You should see something like this:

41:00.0 VGA compatible controller [0300]: NVIDIA Corporation GA104GL [RTX A4000] [10de:24b0] (rev a1)
    Subsystem: NVIDIA Corporation Device [10de:24b0]
    Kernel driver in use: vfio-pci
    Kernel modules: nvidiafb, nouveau

If you see Kernel driver in use: vfio-pci, then the GPU is successfully bound to VFIO.

Create a VM​

Create a new VM in Proxmox and select the GPU as a PCI device. Make sure to check the box for "All Functions" to passthrough all functions of the GPU. You can also select the audio device if you want to passthrough the audio as well.
